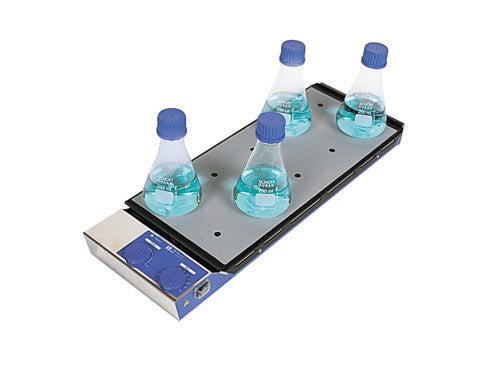

RT 10

10-position digital magnetic hotplate stirrer, designed for synchronous heating and stirring. The magnetic coil technology provides noiseless and consistent stirring on all positions. The surface temperature is infinitely adjustable up to 120 °C, producing a maximum medium temperature of 70 °C (depending on type of vessel). Speed remains constant, even when load changes.

• Homogeneous temperature distribution across heating plate
• Adjustable reverse operation
• Eco-mode for a low self-warming of the surface
• Wear free magnetic coils
• Error code display
• Easy operation with touch keypad
• Suitable for continuous operation
• Adjustable speed in increments of 10 rpm

Number of stirring positions 10
Stirring quantity max. per stirring position (H2O) 0. 4 l
Stirring position distance 90 mm
Speed deviation of individual stirring positions 0 %
Stirring quantity max. (H2O) 4 l
Speed display LED line
Speed range 0 - 1000 rpm
Stirring bar length min. 25 mm
Stirring bar length max. 30 mm
Heat output 375 W
Heating rate (1 l H2O in H15) 3 K/min
Heating temperature range room temp. - 120 °C
Temperature medium max. (dep. on vessel) 70 °C
Heat control LED
Heat control accuracy 1 ±K
Speed control 10 RPM Steps
Adjustable safety circuit min. 50 °C
Adjustable safety circuit max. 150 °C
Set-up plate material Aluminium alloy
Set-up plate dimensions 180 x 495 mm
Dimensions (W x H x D) 190 x 60 x 610 mm
Weight 7. 5 kg
Permissible ambient temperature 5 - 40 °C
Permissible relative humidity 80 %
Protection class according to DIN EN 60529 IP 40
Voltage 230 / 115 / 100 V
Frequency 50/60 Hz
Power input 410 W
IKA-2930500 2930500 IKA-2930505 2930505
