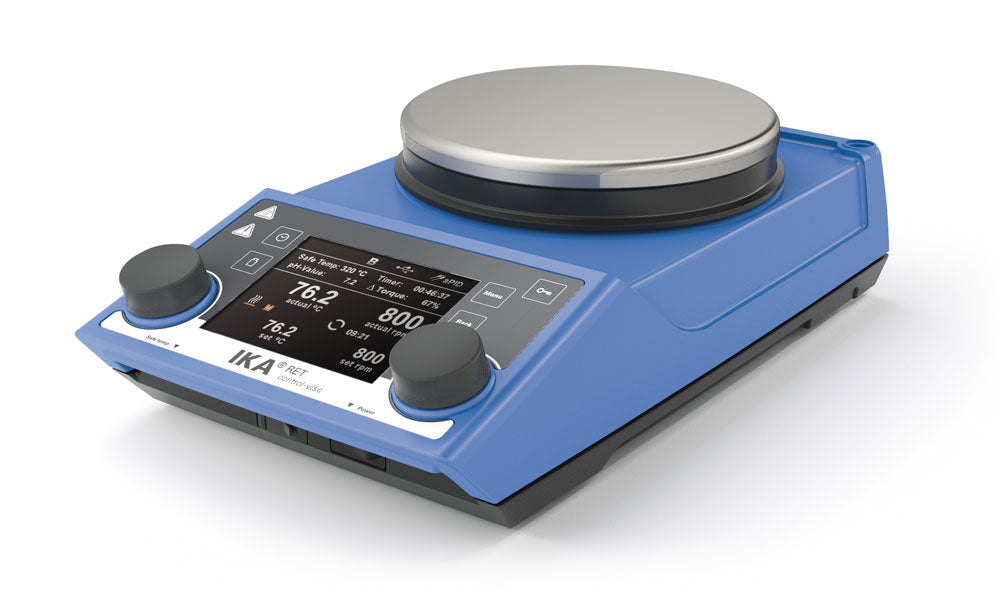

RET Control-Visc White

WORLDS FIRST: Safety magnetic stirrer with heating and integrated weighing function. The clear, multilingual TFT display makes it easy to set all parameters.
Integrated temperature control feature enables connection of a temperature probe which can be placed directly in the medium to control medium temperature with a high degree of precision. PT 100 temperature sensor is included with purchase of RET control. The stainless steel composite hot plate, reaching a temperature of 340 °C, enables rapid heating.
RS 232 and USB interface enables pc control of the magnetic stirrer and documentation of all test parameters. Furthermore firmware updates can be installed through the USB interface. The Lock function prevents inadvertent changes of speed and temperature settings.
As a safety feature, the current temperature is displayed when the unit is switched off but surface is still hot. Below 50 °C the display turns off automatically

• Integrated weighing function
• BNC socket for connection of a pH electrode
• Adjustable temperature control mode: rapid heating or very accurate temperature control
• Dual sensor for simultaneous control of heat transfer fluid temperature and medium temperature (optional)
• Timer and countdown functions
• Display of viscosity change trend
• Detached magnet detection
• Intermittent operation
• Several modes of operation available
• Safety circuit adjustable from 50 to 380°C
• Transparent protective cover included
• Error code display for easy troubleshooting
• Exact temperature and speed adjustment by means of digital display; even when function is switched off
• Digital display of the safety temperature limit
• Suitable for unsupervised operation
• Sealed casing (IP 42) ensures a long service life

Number of stirring positions 1
Stirring quantity max. (H2O) 20 l
Motor rating input 22 W
Motor rating output 12 W
Speed display TFT
Speed range 0/50 - 1700 rpm
Stirring bar length max. 80 mm
Heat output 600 W
Heating rate (1 l H2O in H15) 7 K/min
Heating temperature range room temp. - 340 °C
Temperature medium max. (dep. on vessel) 265 °C
Heat control TFT
Heat control accuracy 0. 1 ±K
Speed control TFT
Adjustable safety circuit min. 50 °C
Adjustable safety circuit max. 380 °C
Connection for ext. temperature sensor PT 100
Control accuracy with sensor 0. 2 ±K
Accuracy of temperature measurement ± (0,15 + 0,2% o. Mv. ) K
Temperature measurement resolution 0. 1 K
Self-heating of the hotplate (RT:22°C/duration:1h) 35 °C
Set-up plate material stainless steel 1. 4301
Set-up plate dimensions √ò 135 mm
Weighing function yes
Weighing range 0 - 5000 g
Load capacity weighing function max. 5 kg
Weighing accuracy <500g : +/-1g , >500g: +/-5g
Viscosity trend measurement yes
Intermittent mode yes
Break detection stirring bar yes
Timer yes
Dimensions (W x H x D) 160 x 85 x 270 mm
Weight 2. 7 kg
Permissible ambient temperature 5 - 40 °C
Permissible relative humidity 80 %
Protection class according to DIN EN 60529 IP 42
RS 232 interface yes
USB interface yes
Voltage 220 - 240 / 115 / 100 V
Frequency 50/60 Hz
Power input 650 W
IKA-5030000 5030000
