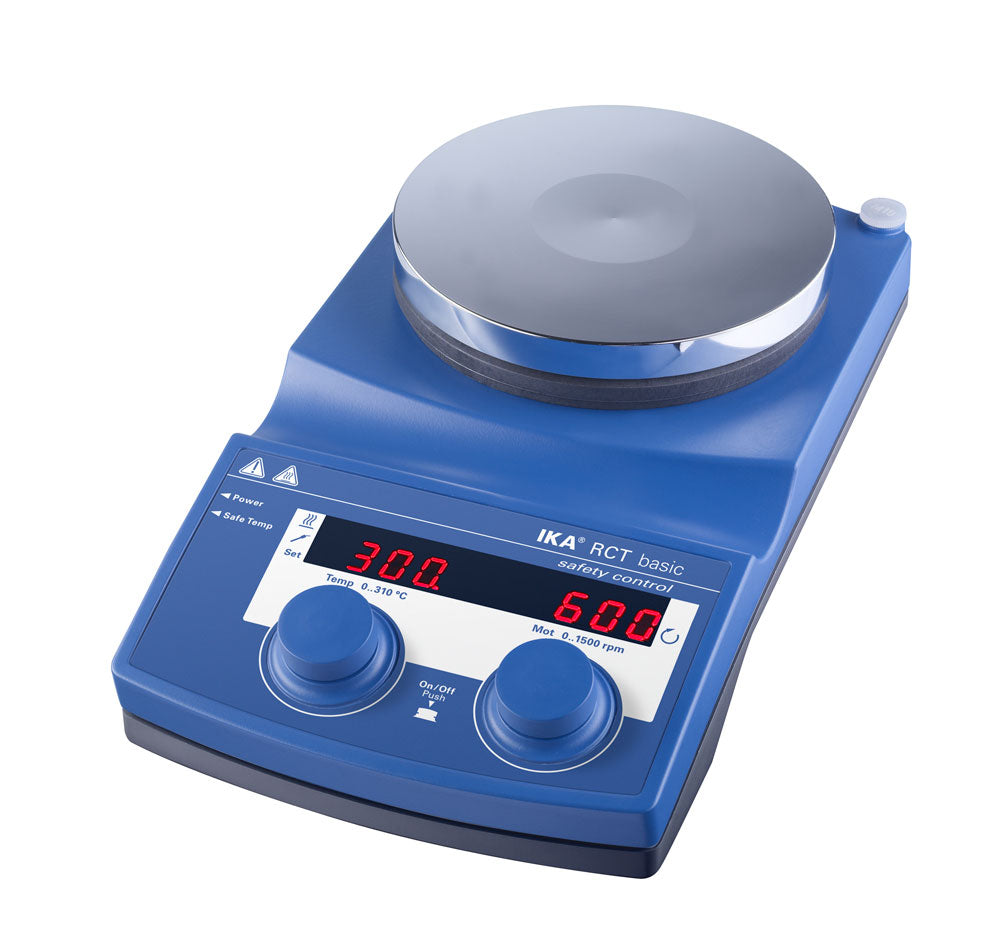

RCT basic IKAMAG safety control

The improvement of the bestseller: Now with new technology for more capacity
New: New: stronger motor for a higher range of speeds
New: Additional temperature control mode for faster heating of medium
• Integrated temperature control
• Incl. PT 1000 temperature sensor (PT 1000. 60)
• Exact temperature and speed setting via digital display, even when switched off
• Set safety temperature limit displayed digitally
• Hot Top indicator >> hot surface warning to prevent burns!
• Digital error code display
• With adjustable safety circuit of heating plate temperature (50 - 360 °C)
• Safety magnetic stirrer with heating, suitable for unsupervised operation
• Bushing according to DIN 12878 for connecting a contact thermometer, e. g. ETS-D5, enables precise temperature control
• High level of safety thanks to improved heat control technology
• Enclosed assembly (IP 42) guarantees long service life
• Highly polished aluminium heating plate for optimum heat transfer
• Improved magnetic adhesion
• Incl. protection cover H 100

Number of stirring positions 1
Stirring quantity max. per stirring position (H2O) 20 l
Motor rating input 16 W
Motor rating output 9 W
Speed display LED
Speed range 0/50 - 1500 rpm
Stirring bar length max. 80 mm
Heat output 600 W
Heating rate (1 l H2O in H15) 6. 5 K/min
Heating temperature max. 310 °C
Heat control LED
Heat control accuracy 1 ±K
Speed control stepless
Adjustable safety circuit min. 50 °C
Adjustable safety circuit max. 360 °C
Control accuracy with sensor 1 ±K
Set-up plate material Aluminium alloy
Set-up plate dimensions √ò 135 mm
Dimensions (W x H x D) 160 x 85 x 270 mm
Weight 2. 5 kg
Permissible ambient temperature 5 - 40 °C
Protection class according to DIN EN 60529 IP 42
Voltage 220 - 230 / 115 / 100 V
Frequency 50/60 Hz
Power input 650 W
3810005 IKA-3810005 3810000 IKA-3810000
