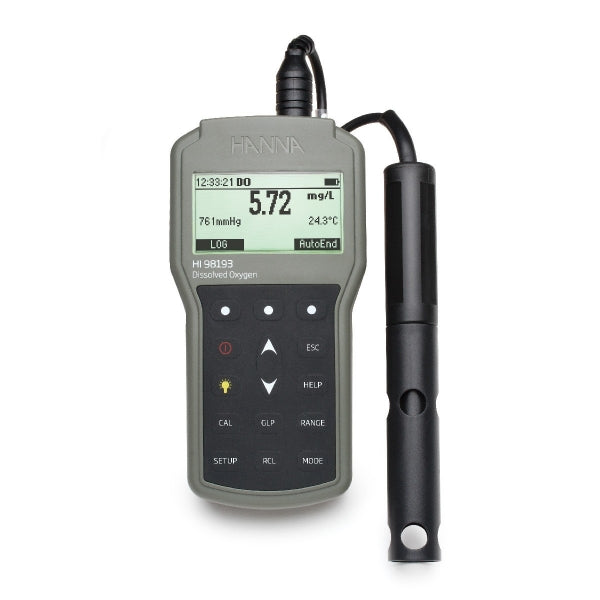

The Hanna HI98193 is a portable waterproof dissolved oxygen meter with extended measurement ranges of up to 50 ppm and 600% saturation. Supplied with the HI764073 polarographic DO probe featuring field-replaceable PTFE membrane caps and a quick-connect waterproof DIN connector for secure, tool-free attachment. Pressure compensation is applied automatically via the meter's built-in barometer — calibrated against a reference — or by manual entry, with pressure displayed in mmHg, inHg, atm, psi, kPa, or mbar. The probe's integrated temperature sensor provides automatic temperature compensation, and manual salinity entry enables accurate measurements in saline waters. Built-in methods allow calculation of Biological Oxygen Demand (BOD), Oxygen Uptake Rate (OUR), and Specific Oxygen Uptake Rate (SOUR). Stores up to 400 log-on-demand readings for PC download via USB with HI92000 software. GLP calibration data — including date, time, pressure, calibrated value, temperature, and salinity — is accessible via a dedicated key. High-contrast graphic LCD with backlight suits outdoor and low-light measurement. Includes compact thermoformed HI760193 carry case.
Science Essentials has supplied quality laboratory equipment and consumables to Australian laboratories since 1979. Brisbane-based with Australia-wide delivery.
Technical Information
Technical Information
| DO Range | 0. 00 to 50. 00 ppm (mg/L); 0. 0 to 600. 0% saturation |
| DO Resolution | 0. 01 ppm (mg/L); 0. 1% saturation |
| DO Accuracy | ±1. 5% of reading ±1 digit |
| DO Calibration | automatic one or two point at 100% saturation (8. 26 mg/L) and 0% saturation (0 mg/L). |
| Atmospheric Pressure Range | 450 to 850 mmHg |
| Atmospheric Pressure Resolution | 1 mmHg |
| Atmospheric Pressure Accuracy | ± 3 mmHg within ±15% from the calibration point |
| Atmospheric Pressure Calibration | one point at any in range pressure value |
| Temperature Range | -20. 0 to 120. 0°C (-4. 0 to 248. 0°F) |
| Temperature Resolution | 0. 1°C (0. 1°F) |
| Temperature Accuracy | ±0. 2°C; ±0. 4°F (excluding probe error) |
| Temperature Calibration | one or two point at any in range temperature value |
| Temperature Compensation | automatic from 0 to 50°C (32 to 122°F) |
| Measurement Modes | direct DO; BOD (biochemical oxygen demand); OUR (oxygen uptake rate); SOUR (specific oxygen uptake rate) |
| Barometric Compensation | automatic from 450 to 850 mmHg |
| Salinity Compenstaion | automatic from 0 to 70 g/L |
| Electrode/Probe | HI764073 polarographic DO probe with protective sleeve, internal temperature sensor, DIN connector and 4m (13’) cable (included) |
| Log-on-demand | up to 400 samples |
| PC Connectivity | opto-isolated USB with optional HI 92000 software and micro USB cable |
| Battery Type/Life | 1. 5V AA batteries (4) / approximately 200 hours of continuous use without backlight (50 hours with backlight) |
| Dimensions | 185 x 93 x 35. 2 mm (7. 3 x 3. 6 x 1. 4”) |
| Weight | 400 g (14. 2 oz. ) |
