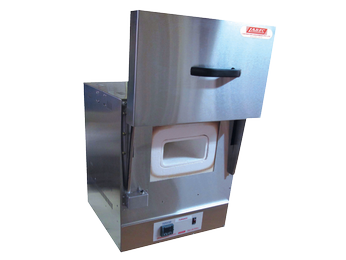

Muffle Furnace CEMLM-SD
Muffle Furnace CEMLM-SD is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
The CEM CEMLM-SD is a medium-chamber Australian-made muffle furnace with a maximum temperature of 1200°C and a lift-up safety door. The safety door is held closed by self-tensioning springs, opens with a slight upward pull, and directs the hot door face away from the operator when open — reducing burn risk during sample loading and unloading. A safety cut-off disables heating whenever the door is opened during operation. Stainless steel double-skinned construction with ceramic fibre insulation for external heat protection and rapid thermal cycling. Electric elements with rear vent port. Optional programmable controllers, timers, and cable access ports.
Science Essentials has supplied quality laboratory equipment and consumables to Australian laboratories since 1979. Brisbane-based with Australia-wide delivery.
Technical Information
Technical Information
| Capacity | 7 |
| Int. Dim HxWxD | 135 x170 x 290 |
| Ext. Dim HxWxD | 71 x56 x 59 |
| Temp. Controller | Digital PID Controller |
| Temp. Min | +300 °C |
| Temp. Max | 1200 °C |
| Temp Setting Accuracy | 1°C |
| Temp. Fluctuation | +/- 1% |
| Temp. Sensor | Type N |
| Heating system | Electric Element |
| Interior material | Ceramic Lined |
| Exterior material | Stainless Steel |
| Options | Cable entry port,programmable controller, extraction vent, internal shelf. Other models: cantilever door, ashing furnace, volatile matter furnace |
| Safety Features | Over temperature alarm, temperature protection cut off, earth leakage breaker (ELB) |
| Power Supply | 240V / 50Hz |
| Power (W) | 3600/15 AMPS |
| Weight (kg) | 52 |
