Muffle Furnace +1200 CEMLL
Muffle Furnace +1200 CEMLL is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

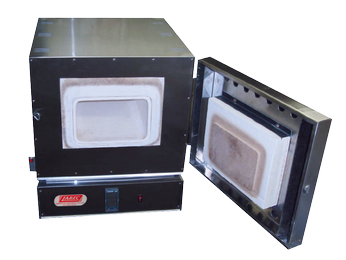

The CEM +1200 CEMLL is a large-chamber Australian-made muffle furnace with a maximum operating temperature of 1200°C. Constructed from high-quality stainless steel with double-skinned walls to maintain a cool exterior at operating temperature. Lightweight ceramic fibre insulation provides rapid thermal cycling capability. Electric elements heat the chamber, with a rear vent port for natural venting or gas purging. Adjustable side locking latch door with safety cut-off when opened. Suited to high-throughput ashing, sintering, heat treatment, and materials testing. Optional programmable controllers, timers, and cable access ports.
Science Essentials has supplied quality laboratory equipment and consumables to Australian laboratories since 1979. Brisbane-based with Australia-wide delivery.
Technical Information
Technical Information
| Capacity | 15 |
| Int. Dim HxWxD | 150 x240 x 425 |
| Ext. Dim HxWxD | 620 x 535 x 620 |
| Temp. Controller | Digital PID Controller |
| Temp. Min | +300 °C |
| Temp. Max | 1200 °C |
| Temp Setting Accuracy | 1°C |
| Temp. Fluctuation | +/- 1% |
| Temp. Sensor | Type N |
| Heating system | Electric Element |
| Interior material | Ceramic Lined |
| Exterior material | Stainless Steel |
| Options | Cable entry port, timer, programmable controller, extraction vent, internal shelf. Other models: safety lift up door, cantilever door, ashing furnace, volatile matter furnace |
| Safety Features | Over temperature alarm, temperature protection cut off, earth leakage breaker (ELB) |
| Power Supply | 240V / 50Hz |
| Power (W) | 4800/20 AMPS |
| Weight (kg) | 59 |
