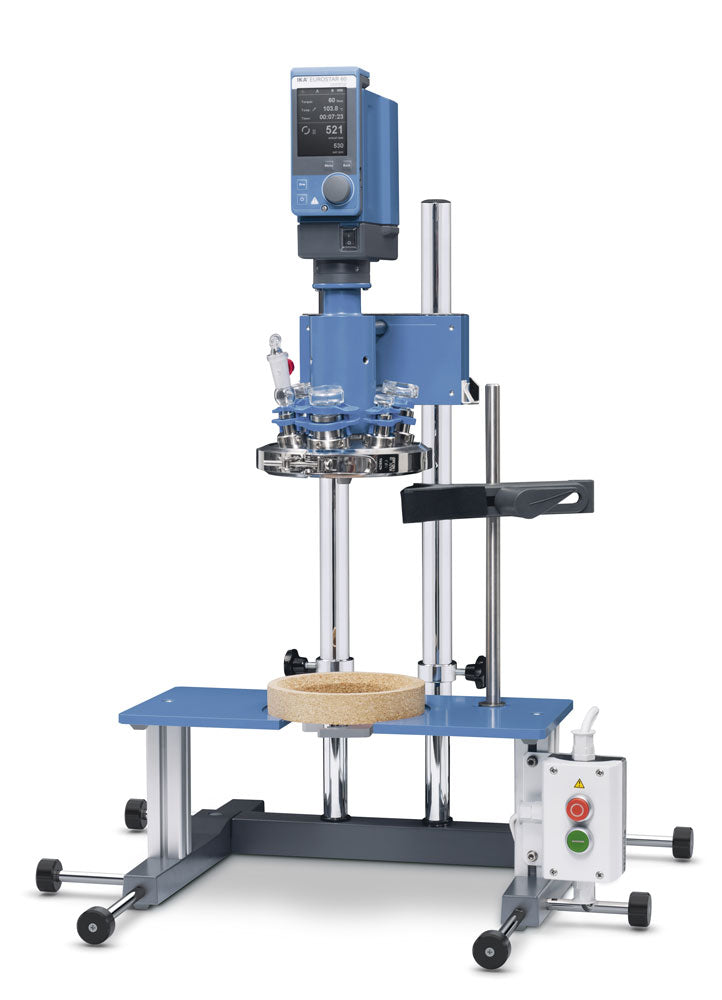

Laboratory Reactor LR-2. ST The Compact Power

Modularly configured laboratory reactor for the optimization and reproduction of various chemical reactions, mixing and homogenization processes on a lab scale.
The system is particularly characterized by the agitator mounting, which allows for a safe transfer of the higher motor torque.
ULTRA-TURRAX dispersers, temperature sensors, flow breakers and other accessories can be attached to the open ports of the reactor cover.

• Suitable for vacuum operation
• Solvent- and temperature-resistant perfluoroelastomer (FFPM) seals come into contact with sample
• Infinitely variable speed
• Torque trend display for measuring changes in viscosity
• Microprocessor-controlled speed regulation, enables steady speed, also under load
• Removable WiCo (wiresless controller) for remote and safe use in a fume hood

The LR-2. ST laboratory reactor system consists of:

• Stand system
• EUROSTAR 60 control laboratory stirrer with higher speed and no gear ranges
• Safety switch
• Reactor cover

Usable volume min.	500 ml
Usable volume max.	2000 ml
Working temperature min.	Room temp. °C
Working temperature max.	230 °C
Attainable vacuum	25 mbar
Viscosity max.	150000 mPas
Speed range	8 - 290 rpm
Telescope stand stroke	390 mm
Material in contact with medium	borosilicate glass, FFPM, PTFE, steel 1. 4571
Reactor vessel openings (units/standard)	3/NS 29/32 2/NS 14/23
Dimensions (W x H x D)	460 x 1240 x 430 mm
Weight	25 kg
Permissible ambient temperature	5 - 40 °C
Permissible relative humidity	80 %
Protection class according to DIN EN 60529	IP 42
RS 232 interface	yes
Analog output	yes
Voltage	230/115 V
Frequency	50/60 Hz
Power input	130 W
