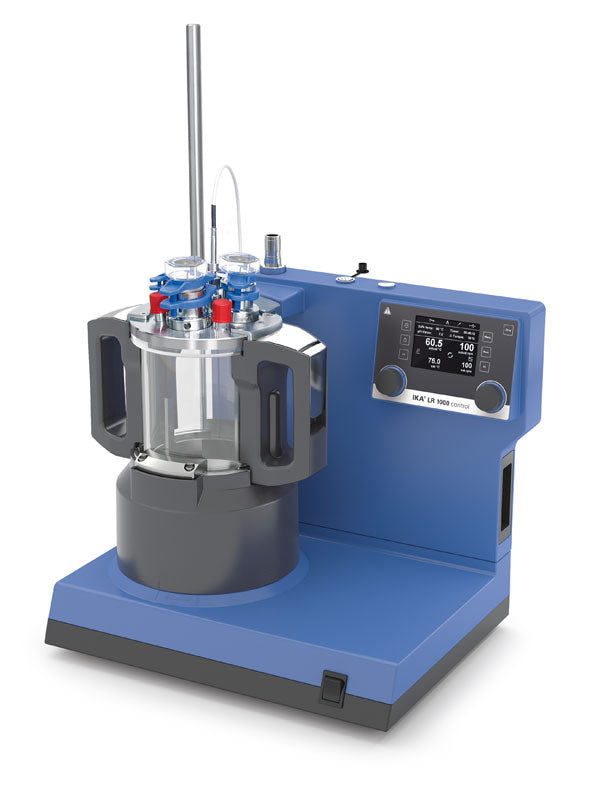

IKA Laboratory Reactor 1000 Control Package
IKA Laboratory Reactor 1000 Control Package is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
IKA LR 1000 control modular laboratory reactor for chemical reaction optimization, mixing, and homogenization at lab scale. Features a large TFT display, integrated weighing function, torque trend measurement, integrated pH sensor connection, RS-232/USB interfaces, anchor stirrer with PTFE scrapers, and vacuum valve. Heats product to 120°C; FFKM/PTFE/PEEK/borosilicate 3.3 wetted materials. Expandable for ULTRA-TURRAX T25 digital disperser. Suited to cosmetic, pharmaceutical, and research applications.
Science Essentials has supplied quality laboratory equipment and consumables to Australian laboratories since 1979. Brisbane-based with Australia-wide delivery.
Technical Information
Technical Information
| Usable volume max. | 1000 ml |
| Usable volume with disperser tool min. | 300 ml |
| Usable volume without disperser tool min. | 500 ml |
| Working temperature max. | 120 °C |
| Attainable vacuum | 25 mbar |
| Viscosity max. | 100000 mPas |
| Speed range | 10 - 150 rpm |
| Support rod diameter (with integrated fastening on stand) | 16 mm |
| Material in contact with medium | AISI 316L, 1. 4571, borosilicate glass 3. 3, PTFE, PEEK, FFKM |
| Reactor vessel openings (units/standard) | 2x NS 29/32, 2x NS 14/23 2x GL 14 |
| Permissible ON time | 100 % |
| Temperature measurement resolution | 0. 1 K |
| Nominal torque | 3 Nm |
| Heat output | 1000 W |
| Cooling medium permissible operating pressure | 1 bar |
| Weighing range max. | 2000 g |
| Weighing resolution | 1 g |
| Speed min (adjustable) | 10 rpm |
| Heating temperature max. | 180 °C |
| Adjustable safety circuit, upper temperature value | 225 °C |
| Adjustable safety circuit, lower temperature value | 47 °C |
| Adjustable safety circuit, upper temperature value deviation | 20 ±K |
| Adjustable safety circuit, lower temperature value deviation | 10 ±K |
| Cooling medium temperature min. | 3 °C |
| Set temperature resolution | 1 ±K |
| Heat control accuracy of medium with sensor | 0. 2 ±K |
| Speed deviation | 5 ±rpm |
| Speed display | TFT |
| Heat control | TFT |
| Connection for ext. temperature sensor | PT 100 |
| Stirring element fastening | special output shaft |
| Torque display | yes |
| Torque measurement | trend |
| Timer | yes |
| Timer display | TFT |
| Speed control | 1 RPM steps |
| Type of cooling | flow |
| Temperature display | yes |
| Working temperature sensor | PT 100 |
| Safety temperature sensor | PT1000 |
| Working temperature display | TFT |
| Safety temperature display | TFT |
| Display for operation with ext. sensor | yes |
| Safety cutout | yes |
| Reversible direction of rotation | no |
| pH meter interface | yes |
| pH value display | TFT |
| Dimensions (W x H x D) | 443 x 360 x 295 mm |
| Weight | 16 kg |
| Permissible ambient temperature | 5 - 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 21 |
| RS 232 interface | yes |
| USB interface | yes |
| Analog output | no |
| Voltage | 230/115 V |
| Frequency | 50/60 Hz |
| Power input | 1200 W |
0010001035, IKA-0010001035, IKA-10001035
