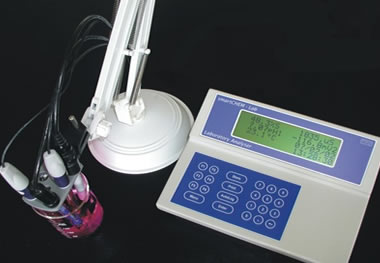

LabCHEM-C Benchtop Conductivity TDS Temperature Meter
LabCHEM-C Benchtop Conductivity TDS Temperature Meter is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
The labCHEM-C is a Conductivity, TDS, and Temperature that has all the features required for precision laboratory work, but which is easy enough for anybody to use.
The 16 character alphanumeric display has huge 14. 5mm digits. It features simultaneous readout of Conductivity/TDS and temperature and user-friendly full-text messages.
The new Automatic Stability Function (ASF) makes taking readings absolutely simple. When all the readings have fully stabilised, the ASF system will freeze the display and show a tick. The reading can then be recorded as required. The user can also disable the ASF system.
The labCHEM-C is ideal for Quality Control laboratories, plant operators, educational use and many other purposes. It has been designed primarily for ease of use. Operators with little or no laboratory experience can operate the labCHEM-C with complete confidence quickly and easily.
The labCHEM-C is fully waterproof to IP65, so it is suitable for even the harshest laboratory or factory environments. It has just four keys to make operation of the labCHEM-C absolutely simple. Calibration of the labCHEM-C is fully automatic at the press of just one key. The meter automatically recognises standards and calibrates itself accordingly. The electrode zero and span are displayed at calibration, allowing for preventative maintenance and instant troubleshooting.
Expand the capabilities of the labCHEM-C with the optional RS232 interface. All readings obtained with the labCHEM-C can be stored permanently on disk. Communication software for Windows is also available.
An analogue recorder output is another option. This provides an interface with pen type recorders or dataloggers with analogue input.
The labCHEM-C operates from an AC/DC power adaptor. Adaptors are available for all countries.
The labCHEM-C is proudly designed and manufactured in Australia. Our aim is to provide you with the best quality, service and value for money. The TPS Quality System has been certified in accordance with the AS/NZS ISO 9001 standard. Since 1968, TPS has built a reputation for excellent backup service that is second to none.
Technical Information
Technical Information
Ranges : 4 ranges with auto range selection
k=0. 1 Sensor :
0 to 2. 000 uS/cm
0 to 20. 00 uS/cm
0 to 200. 0 uS/cm
0 to 2000 uS/cm
k=1 Sensor :
0 to 20. 00 uS/cm
0 to 200. 0 uS/cm
0 to 2000 uS/cm
0 to 20. 00 mS/cm
k=10 Sensor :
0 to 200. 0 uS/cm
0 to 2000 uS/cm
0 to 20. 00 mS/cm
0 to 200. 0 mS/cm
Resolution 0. 05% of selected range
+/-0. 5% of full scale of selected range at 25OC
Ranges : 4 ranges with auto range selection.
k=0. 1 Sensor :
0 to 1. 000
ppM 0 to 10. 00 ppM
0 to 100. 0 ppM
0 to 1000 ppM
k=1 Sensor :
0 to 10. 00 ppM
0 to 100. 0 ppM
0 to 1000 ppM
0 to 10. 00 ppK
k=10 Sensor :
0 to 100. 0 ppM
0 to 1000 ppM
0 to 10. 00 ppK
0 to 100. 0 ppK
0. 1% of selected range
+/-0. 5% of full scale of selected range at 25OC
Range : -10. 0 to 120. 0 OC
Resolution : 0. 1 OC
Accuracy : +/-0. 2 OC
Automatic, 0 to 100 OC, via thermistor in Conductivity sensor.
Conductivity
14. 94 uS/cm, 73. 9 uS/cm, 150. 0 uS/cm,
717. 8 uS/cm, 1413 uS/cm, 2760 uS/cm,
6. 67 mS/cm, 12. 90 mS/cm, 24. 82 mS/cm,
58. 00 mS/cm, 111. 9 mS/cm
69. 5 ppM, 2. 00 ppK, 8. 00 ppK, 36. 0 ppK
Tough, high impact ABS. Waterproof case and connectors.
14. 5mm high, 16 character alphanumeric LCD with full-text messages.
1200, 9600, 19200 or 38400 Baud.
8 Bits, No Parity, 1 Stop Bit, XON/XOFF
Cond : 0~2000 Counts = 0~2000 mV ie. 2. 76 mS/cm = 276 mV
Power
12V AC/DC Power Adaptor.
240 x 180 x 105 mm
Instrument only : Approx 1. 0kg
Full Kit : Approx 2. 5kg
Temperature : 0 to 45°C
Humidity : 0 to 90% R. H.
122106
