TPS  |  SKU: 648962

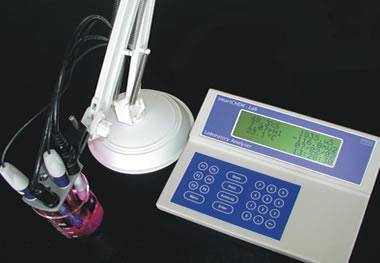

LabCHEM-CP Benchtop pH Conductivity TDS Temperature Meter

Please sign in to request a quote.
$1,128.00 AUD
Shipping calculated at checkout.

Description

The NEW labCHEM-CP is a Conductivity, TDS, pH, mV and Temperature meter that has all the features required for precision laboratory work, but which is easy enough for anybody to use.

The 16 character alphanumeric display has huge 14. 5mm digits. It features simultaneous readout of Conductivity/ TDS and pH/mV with user-friendly full-text messages.

The labCHEM-CP is ideal for a broad range of applications, including Quality Control laboratories, plant operators, schools, colleges and universities. It is user-friendly and users with little or no laboratory experience can operate the labCHEM-CP with complete confidence quickly and easily.

The waterproof keypad of the labCHEM-CP eliminates the need for knobs and dials. It has just four keys to make operation of the labCHEM-CP absolutely simple.

Calibration of the labCHEM-CP is fully automatic at the press of just one key. The meter automatically recognises buffers and calibrates itself accordingly. The electrode asymmetry and slope are displayed at calibration, allowing for preventative maintenance and instant troubleshooting. An Automatic Stability Function (ASF) is a standard feature. ASF automatically freezes the display when all readings become stable. ASF can also be used during calibration to ensure the highest possible degree of accuracy.

Expand the capabilities of the labCHEM-CP with the optional RS232 serial port interface. All readings obtained with the labCHEM-CP can be stored permanently on disk. The WinTPS software package is also available, allowing the labCHEM-CP to communicate with a PC running Windows 95, 98, ME, 2000 XP.

An analogue recorder output is another option. This provides an interface with pen type recorders or dataloggers with analogue input.

The labCHEM-CP operates from an AC/DC power adaptor. Adaptors are available for all countries. The labCHEM-CP is proudly designed and manufactured in Australia. Our aim is to provide you with the best quality, service and value for money. The TPS Quality System has been certified in accordance with the AS/NZS ISO 9001 standard. For over 30 years, TPS has built a reputation for excellent backup service that is second to none.

Technical Information

Conductivity
Ranges : 4 ranges with auto range selection
k=0. 1 Sensor :
0 to 2. 000 uS/cm
0 to 20. 00 uS/cm
0 to 200. 0 uS/cm
0 to 2000 uS/cm
k=1 Sensor :
0 to 20. 00 uS/cm
0 to 200. 0 uS/cm
0 to 2000 uS/cm
0 to 20. 00 mS/cm
k=10 Sensor :
0 to 200. 0 uS/cm
0 to 2000 uS/cm
0 to 20. 00 mS/cm
0 to 200. 0 mS/cm
Resolution
0. 05% of selected range
Accuracy
+/-0. 5% of full scale of selected range at 25OC
TDS
Ranges : 4 ranges with auto range selection.
k=0. 1 Sensor :
0 to 1. 000 ppM 0 to 10. 00 ppM
0 to 100. 0 ppM
0 to 1000 ppM
k=1 Sensor :
0 to 10. 00 ppM
0 to 100. 0 ppM
0 to 1000 ppM
0 to 10. 00 ppK
k=10 Sensor :
0 to 100. 0 ppM
0 to 1000 ppM
0 to 10. 00 ppK
0 to 100. 0 ppK
Resolution
0. 1% of selected range
Accuracy
+/-0. 5% of full scale of selected range at 25OC
pH
Range : 0 to 14. 00 pH
Resolution : 0. 01 pH
Accuracy : +/-0. 01pH
mV Range : 0 to +/-600. 0 and 0 to +/-1500 mV (auto-ranging)
Resolution : 0. 1 1 mV
Accuracy : +/-0. 15 +/-1 mV
Temperature
Range : -10. 0 to 120. 0 OC
Resolution : 0. 1 OC
Accuracy : +/-0. 2 OC
Input Impedance
>3 x 1012 Ohms
Asymmetry Range
-1. 00 to +1. 00 pH
Slope Range
85. 0 to 105. 0%
Temperature Compensation
Conductivity
Automatic, 0 to 100OC, via thermistor in Conductivity sensor.
pH
Automatic (via Temperature sensor) or manual, 0 to 100 OC.
The 901-CP automatically detects whether or not the temperature sensor is connected.
Automatic Standard Recognition
Conductivity
14. 94 uS/cm, 73. 9 uS/cm, 150. 0 uS/cm,
717. 8 uS/cm, 1413 uS/cm, 2760 uS/cm,
6. 67 mS/cm, 12. 90 mS/cm, 24. 82 mS/cm,
58. 00 mS/cm, 111. 9 mS/cm
TDS
69. 5 ppM, 2. 00 ppK, 8. 00 ppK, 36. 0 ppK
pH
4. 00, 6. 88, 7. 00, 9. 23 and 10. 06 pH
Enclosure
Tough, high impact ABS. Splash resistant one-piece lid.
Display
14. 5mm high, 16 character alphanumeric LCD with full-text messages.
RS232 Serial Port Output (Optional)
300, 1200 and 9600 Baud.
8 Bits, No Parity, 1 Stop Bit, XON/XOFF
Recorder Output (Optional)
0 to 2000mV Output for
0. 00 to 14. 00 pH
-1500 to 1500 mV
-10. 0 to 120. 0 OC
Output impedance approx 1000 Ohms
Power
12V AC/DC Power Adaptor.
Dimensions
270 x 210 x 75 mm
Mass
Instrument only : Approx 1. 0kg
Full Kit : Approx 2. 5kg
Environment
Temperature : 0 to 45°C
Humidity : 0 to 90% R. H.
126129
