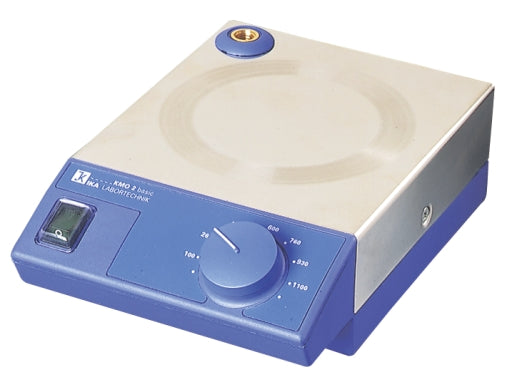

KMO 2 Basic

Small, powerful magnetic stirrer without heating.

• Strong magnetic field
• Motor with optoelectronic speed control
• Infinitely variable speed from 0 - 1,100 rpm
• Stainless steel casing facilitates cleaning and sterilization
• Includes M 10 thread for H 16 V support rod

Number of stirring positions 1
Stirring quantity max. per stirring position (H2O) 5 l
Stirring quantity max. (H2O) 5 l
Motor rating input 14 W
Motor rating output 4 W
Speed range 0 - 1100 rpm
Stirring bar length max. 50 mm
Set-up plate material stainless steel 1. 4301
Set-up plate dimensions 140 x 120 mm
Dimensions (W x H x D) 140 x 75 x 200 mm
Weight 1. 4 kg
Permissible ambient temperature 5 - 40 °C
Permissible relative humidity 80 %
Protection class according to DIN EN 60529 IP 21
Voltage 230 / 115 / 100 V
Frequency 50/60 Hz
Power input 20 W
IKA-2812000 2812000 IKA-2812005 2812005
