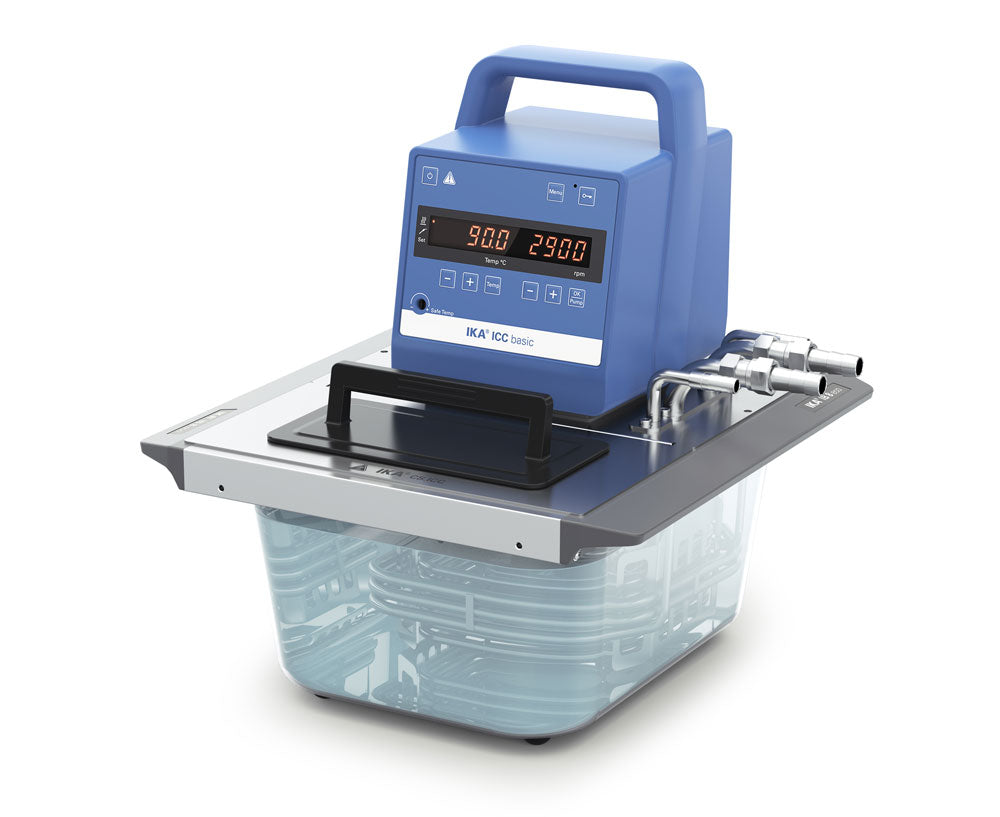

ICC Basic Eco 8 C

IKA facilitates the configuration of your temperature control system by offering ready for connection packages with all necessary accessories.

Package includes

Appliance type	Compact immersion circulators
Class designation acc. DIN 12876	III
Identification according to DIN 12876	FL
Heat output	2000 W
Working temperature min.	room temp. +10K @1000rpm °C
Working temperature max.	150 °C
Operating temperature min. (with external cooling)	-20 °C
Operating temperature max. (with external heating)	150 °C
Temperature display	yes
Temperature control	PT 100
Working temperature sensor	PT 100
Safety temperature sensor	PT1000
Working temperature display	LED
Safety temperature display	LED
Temperature stability DIN 12876	0. 02 ±K
Display resolution	0. 1 K
Display for operation with ext. sensor	yes
Set temperature resolution	0. 1 ±K
Warning function optical	yes
Warning function acoustic	yes
Warning function excess temperature	yes
Warning function insufficient temperature	no
Adjustable safety circuit min.	0 °C
Adjustable safety circuit max.	160 °C
Sub-level protection	yes
Over-level protection	yes
Pump type	Pressure- / suction pump
Pump capacity adjustable	yes
Pump pressure max. (0 liters discharge flow)	0. 3 bar
Pressure pump (suction side) (0 liter flow)	0. 2 bar
Flow rate max. (0 bar back pressure)	18 l/min
Bath depth min.	150 mm
Calibration option	yes
Appliance fastener	clamp
Technical data complies with the standard	DIN 12876
Permissible ON time	100 %
Dimensions (W x H x D)	145 x 340 x 200 mm
Weight	3. 75 kg
Permissible ambient temperature	5 - 40 °C
Permissible relative humidity	80 %
Protection class according to DIN EN 60529	IP 21
RS 232 interface	yes
USB interface	yes
Voltage	230/115 V
Frequency	50/60 Hz
Power input	2100 W

0008035700

ICC Basic Eco 8 C
