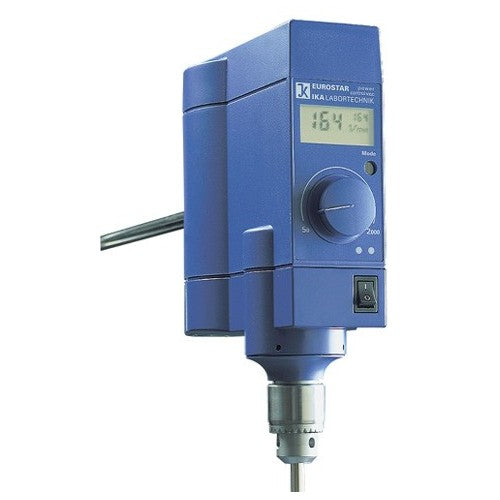

EUROSTAR power control-visc

Powerful, digital laboratory stirrer for tasks up to the - high viscosity - range. Same features as EUROSTAR power basic, additionally: Iabworldsoft software is available to allow speed and torque parameters to be controlled, regulated and documented via a PC.

- Digital display presents rated - / actual speed
- Integrated torque trend display for viscosity control
- Analog interface for recording speed and torque
- RS 232 interface

Stirring quantity max. (H2O) [l] 40
Motor rating input [W] 130
Motor rating output [W] 110
Speed display LCD
Speed range [rpm] 50 - 2000
Viscosity max. [mPas] 50000
Output max. at stirring shaft [W] 105
Permissible ON time [%] 100
Torque max. at stirring shaft [Ncm] 60
Torque max. at stirring shaft at 60 1/min (overload) [Ncm] 60
Torque max. at stirring shaft at 100 1/min [Ncm] 60
Torque max. at stirring shaft at 1. 000 1/min [Ncm] 60
Speed control stepless
Stirring element fastening chuck
Chuck range min. diameter [mm] 0. 5
Chuck range max. diameter [mm] 10
Hollow shaft, inner diameter [mm] 11
Hollow shaft (push-through ¬ø when stopped) yes
Fastening on stand extension arm
Extension arm diameter [mm] 16
Extension arm length [mm] 200
Torque display yes
Nominal torque [Nm] 0. 6
Torque measurement trend
Dimensions (W x H x D) [mm] 80 x 253 x 190
Weight [kg] 3. 8
Permissible ambient temperature [°C] 5 - 40
Permissible relative moisture [%] 80
Protection class according to DIN EN 60529 IP 42
RS 232 interface yes
Analog output yes
Voltage [V] 230 / 115 / 100
Frequency [Hz] 50/60
Power input [W] 130
IKA-2600000 2600000
