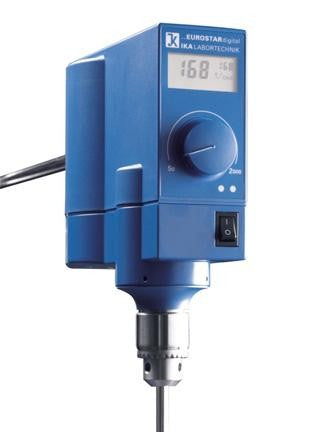

EUROSTAR digital

Laboratory stirrer that can be used up to the medium viscosity range.

- Constant speed by microprocessor control
- Digital display presents set and actual speed
- Infinitely adjustable without gear shifting
- Slim casing
- Quiet operation
- Safety circuit
- Non-locking, overload capabilities
- Push-through agitator shafts
- Enhanced safety as a result of smooth start

Stirring quantity max. (H2O) [l] 20 Motor rating input [W] 75 Motor rating output [W] 55 Speed display LCD Speed range [rpm] 50 - 2000 Viscosity max. [mPas] 10000 Output max. at stirring shaft [W] 53 Permissible ON time [%] 100 Torque max. at stirring shaft [Ncm] 30 Torque max. at stirring shaft at 60 1/min (overload) [Ncm] 30 Torque max. at stirring shaft at 100 1/min [Ncm] 30 Torque max. at stirring shaft at 1. 000 1/min [Ncm] 30 Speed control stepless Stirring element fastening chuck Chuck range min. diameter [mm] 0. 5 Chuck range max. diameter [mm] 10 Hollow shaft, inner diameter [mm] 11 Hollow shaft (push-through ¬ø when stopped) yes Fastening on stand extension arm Extension arm diameter [mm] 13 Extension arm length [mm] 160 Torque display no Nominal torque [Nm] 0. 3 Dimensions (W x H x D) [mm] 80 x 222 x 190 Weight [kg] 2. 8 Permissible ambient temperature [°C] 5 - 40 Permissible relative moisture [%] 80 Protection class according to DIN EN 60529 IP 42 RS 232 interface no Analog output no Voltage [V] 230 / 115 / 100 Frequency [Hz] 50/60 Power input [W] 75 IKA-2482005 2482005 IKA-2482000 2482000
