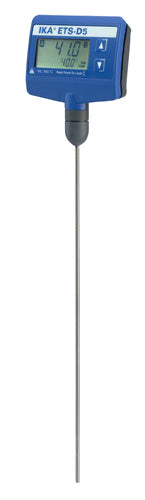

ETS-D5 Package

Electronic contact thermometer with 3 patented operating modes of IKA

• With optimised PID control
• RESET function
• Incl. stainless steel sensor H 62
• For all magnetic stirrers with contact thermometer bushing according to DIN 12878, class 2 e. g. IKA, Heidolph and Corning with adapter AD-C1)
• With 3 patented operating modes
• Ensures perfect temperature control without overshooting the set temperature, even in the case of quick heating

Patented: 3 modes of operation guarantee optimum adjustment to your working method: • Operating mode A: Suitable for work with varying parameters (from -50 °C to 450 °C). Safety temperature adjustable
• Operating mode B: Suitable for series operation under uniform conditions
• Operating mode C: Suitable for unsupervised operation

All values are taken from the memory. This ensures perfect protection against inadvertent improper adjustment.

Temperature measuring range min. -50 °C
Temperature measuring range max. 450 °C
Temperature measurement resolution 0. 1 K
Accuracy of temperature measurement ±0. 2 + tolerance PT1000 (DIN IEC 751 Class A) K
Heat control accuracy 0. 1 ±K
Control accuracy with sensor 0. 5 ±K
Immersion depth max. 200 mm
Permissible ON time 100 %
Dimensions (W x H x D) 82 x 83 x 22 mm
Weight 0. 2 kg
Permissible ambient temperature 0 - 60 °C
Permissible relative humidity 80 %
Protection class according to DIN EN 60529 IP 54
RS 232 interface no
Analog output no
DC Voltage 8 - 16 V=
Current consumption 15 mA
IKA-9024800 9024800 IKA-3378000 3378000
