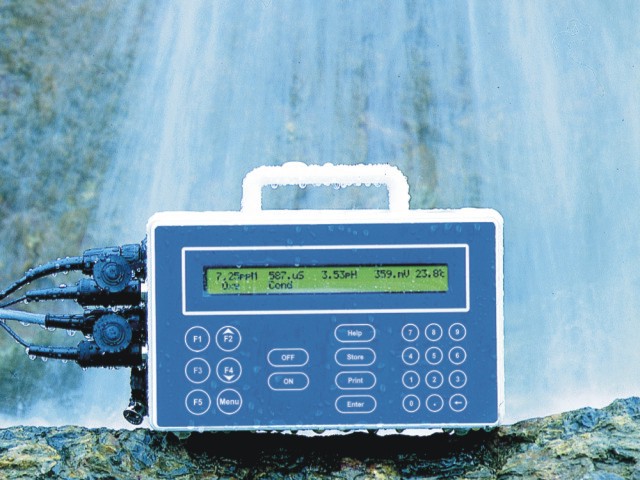

90FLMV 5m Bundle

The TPS range of Field Lab Analysers provide a complete measurement solution for several of the most important water quality parameters.
User-friendly
All measurements are shown simultaneously on the 80 character display. There is no need to change modes to check any of your vital data. The user-friendly menu system guides the operator through all operations such as calibration, setup etc. Full text help and error messages are provided along the way.

Waterproof
The 90 series is designed for rugged field
applications in wet environments. The case, keypad and connectors are rated to IP65.
Good Laboratory Practices
To comply with GLP guidelines, the date, time and results of the last calibration are stored in memory, along with the unit's serial number. This data can be displayed or sent directly to the RS232 port. Warning of failed calibration is provided. All readings stored in memory are stamped with the date and time.


Notepad Function
A standard feature of the 90 series is the Notepad function. Up to 8100 sets of readings (depending on model) can be recorded for later review. These can be downloaded to a printer or computer via the RS232 port. For added functionality, the user is able to enter up to two additional items to be tagged on to the reading. Many operators use this function as a pond or site identifier, depth or readings from other instruments.
Datalogging
Automatic datalogging provides the capability to automatically record up to 8100 sets of readings (depending on model) at user-set intervals. The unit remains dormant between readings and only wakes up whenever a reading is due. Battery life is considerably improved with this facility.

RS232 Serial Port Interface
All recorded data can be downloaded directly to a Printer or Computer with the standard RS232 port (cable sold separately). With the WinTPS communication software, many instrument functions can be controlled from the computer. This makes the units ideal for remote monitoring.

The 90 Series is proudly designed and manufactured in Australia. Our aim is to provide you with the best quality, service and value for money. The TPS Quality System has been certified in accordance with the AS/NZS ISO 9001 standard. Since 1968, TPS has built a reputation for excellent backup service that is second to none.

NOTE: 5m Bundle Includes
Submersible pH, sensor, 5m cable 111224
ORP, Submersible, 5m 111259
k=1 Conductivity/Temperature Sensor, 5m 122196
YSI 5739 Dissolved Oxygen Sensor (no cable) 123204
5m cable for sensor 123219
pH7. 00 Buffer, 200mL 121387
pH4. 01 Buffer, 200mL 121381
2. 76mS/cm Conductivity Standard, 200mL 122306
ORP Calibration Solution, 200mL 121309
Battery Charger 130009
Manual 130050

Specifications

pH
Range : 0. 00 to 14. 00 pH
Resolution : 0. 01 pH
Accuracy : ±0. 01pH
Impedance : >3 x 1012 Ohms
Asymmetry : -1. 00 to +1. 00 pH
Range : 85 to 105%
Temperature
Compensation : Automatic, -5 to 100OC
Calibration : 2 Point automatic
pH Buffers : Auto recognition of
pH4. 01, pH6. 86, pH7. 00,
pH9. 18 and pH10. 01.
Other buffers can be
keyed in at
calibration.
ORP (90FL-T & 90FL-MV only)
Range : 0 to +/-1999 mV
Resolution : 1 mV
Accuracy : +/-1 mV

Conductivity
Ranges : 4 ranges with auto
range selection
k=0. 1 Sensor : 0 to 2. 000 uS/cm
0 to 20. 00 uS/cm
0 to 200. 0 uS/cm
0 to 2000 uS/cm
k=1 Sensor : 0 to 20. 00 uS/cm
0 to 200. 0 uS/cm
0 to 2000 uS/cm
0 to 20. 00 mS/cm
k=10 Sensor : 0 to 200. 0 uS/cm
0 to 2000 uS/cm
0 to 20. 00 mS/cm
0 to 200. 0 mS/cm

Resolution : 0. 05% of full scale of
selected range.
Accuracy : ±0. 5% of full scale of
selected range at 25OC.
Temperature
Compensation : All readings
automatically
normalised to 25OC at
-2. 2%/OC.
Zero
Calibration : Automatic in air.
Span
Calibration : Automatic to user-
defined standard.

TDS
Ranges : 4 ranges with auto range
selection.
k=0. 1 Sensor : 0 to 1. 000 ppM
0 to 10. 00 ppM
0 to 100. 0 ppM
0 to 1000 ppM
k=1 Sensor : 0 to 10. 00 ppM
0 to 100. 0 ppM
0 to 1000 ppM
0 to 10. 00 ppK
k=10 Sensor : 0 to 100. 0 ppM
0 to 1000 ppM
0 to 10. 00 ppK
0 to 100. 0 ppK

Resolution : 0. 1% of full scale of
selected range.
Accuracy : ±0. 5% of full scale of
selected range at 25OC.
Temperature
Compensation : All readings
automatically
normalised to 25OC at
-2. 2%/OC.
Zero
Calibration : Automatic in air.
Span
Calibration : Automatic to user-
defined Conductivity
standard.

Salinity
Ranges :
k=0. 1 Sensor : 0 to 0. 10 %
0 to 1. 0 PSU
k=1 Sensor : 0 to 1. 19 %
0 to 11. 9 PSU
k=10 Sensor : 0 to 8. 00 %
0 to 80. 0 PSU

Resolution : 0. 01 % or 0. 1 PSU
Accuracy : ±0. 5% of full scale of
selected range at 25OC.
Temperature
Compensation : All readings
automatically
normalised to 25OC at
-2. 2%/OC.
Zero
Calibration : Automatic in air.
Span
Calibration : Automatic to user-
defined Conductivity
standard.
Dissolved Oxygen
Ranges : 0 to 32. 00 ppM (mg/L)
0 to 320. 0 %Saturation
0 to 66. 0 %Gaseous
Resolution : 0. 01 ppM (mg/L)
0. 1 %Saturation
0. 1 %Gaseous
Accuracy : ±0. 02 ppM (mg/L)
±0. 3 %Saturation
±0. 1 %Gaseous
Temperature
Compensation : Automatic for
solubility (ppM only)
and membrane
permeability.
Zero
Calibration : Automatic at less
than 5%.
Span
Calibration : Automatic in air.
Turbidity (90FL-T only)
Ranges : 0. 1 to 200. 0 NTU
0 to 2000 NTU
(Ranges subject to sensor performance)
Resolution : 0. 1 NTU
1 NTU
Accuracy : +/-1 NTU
Linearity : 3%
Temperature
Coefficient : <-0. 3%/OC, 0 to 40OC
Zero
Calibration : Automatic in distilled
water.
Span
Calibration : Automatic to user-
defined standard.

Temperature
Range : -10. 0 to 110. 0 OC
(Cond. sensor limit 60 OC)
Resolution : 0. 1 OC
Accuracy : +/-0. 2 OC
Calibration : Automatic, 1 or 2
point

Good Laboratory Practices
Date, time and value of last calibration for each parameter are stored. This information can be recalled or sent to the RS232 port at any time.

Warning of failed calibration is provided.

All readings stored in memory are stamped with the date and time.

Datalogging
Memory Capacity
90FL : 8100 readings (6500 with
extra data input active).
90FL-MV : 7200 readings (5900 with
extra data input active).
90FL-T : 6500 readings (5400 with
extra data input active).

Extra Data Input
2 extra items of data can be input when using the Notepad function.
Each item can be a maximum of 4 characters, including a decimal point.
Extra Data items are labelled A and B.

Automatic Logging
All 3 models can be programmed to
- Automatically log from 1 to 288
readings per day.
- Automatically log readings at a
preset interval for a preset
duration.

RS232 Serial Port Output
8 Bits, No Parity, 1 Stop Bit,
XON/OFF Protocol.
300, 9600 & 19200 baud available.

Display
2 line x 40 Character alphanumeric LCD shows all readings simultaneously.

Keypad
5 Function keys, Menu key, 14 data entry keys, OFF, ON.

Dimensions
230 x 140 x 100 mm

Mass
Meter only : Approx 1. 5 kg
Full Kit : Approx 6. 5 kg

Environment
Temperature : 0 to 45 OC
Humidity : 0 to 90% R. H.

Power
7. 2V Rechargeable NiCad Battery
Any 12VDC supply will recharge the battery.

130018/5 130018/5/K1 130018/K1/5
