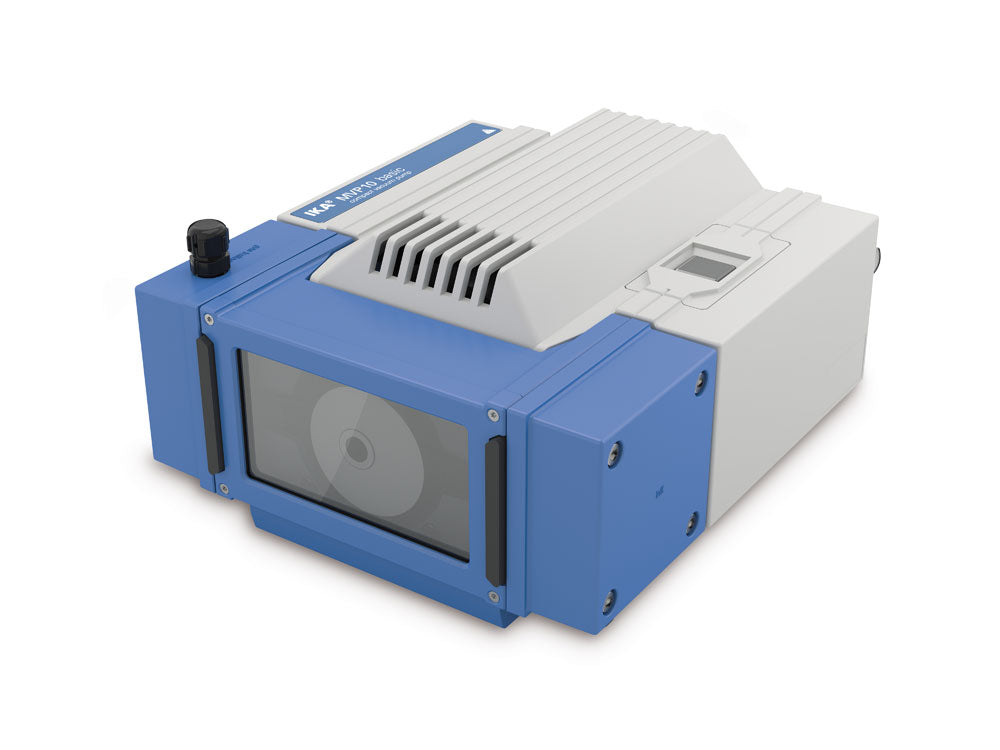

MVP 10 Basic Vacuum Pump

For dry, oil-free applications

• Slimline, compact design and long service life
• Straightforward servicing and simple maintenance
• Diaphragm pump that is highly resistant to chemicals as all parts that come into contact with gas are made of PTFE or PTFE compounds

Pump rate max. (50/60Hz)	1. 7 m³/h
Pump rate max. (50/60Hz)	28. 3 l/min
Final pressure without gas ballast	8 mbar
Final pressure with gas ballast	15 mbar
Suction levels	2
Cylinder	2
Connection diameter suction side	10 mm
Connection diameter pressure side	10 mm
Gas ballast valve	yes
Input pressure min.	7 mbar
Input pressure max.	1050 mbar
Speed range	1380 - 1680 rpm
Nominal speed	1380 rpm
Vacuum sensor	no
Venting valve	no
Condensate trap	no
Emission condenser	no
Noise at low. pressure	65 dB(A)
Dimensions (W x H x D)	245 x 155 x 320 mm
Weight	11. 5 kg
Permissible ambient temperature	10 - 40 °C
Permissible relative humidity	80 %
Protection class according to DIN EN 60529	IP 54
RS 232 interface	no
USB interface	no
Analog output	no
Voltage	230/115/100 V
Frequency	50/60 Hz
Power input	180 W

0003980000, IKA-0003980000, IKA-3980000
