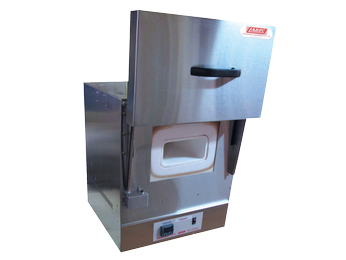

Muffle Furnace CEMLL-SD

Muffle Furnaces are manufactured in Australia with high quality stainless steel for easy maintenance and excellent durability.
The double skinned construction keeps the exterior body cool at high temperatures and provides excellent stability.
The furnace features light weight ceramic fibre insulation for rapid thermal cycling and heating by electric elements with a rear vent port for natural venting or gas purging.

Thesafety door models door is firmly held closed with self tensioning springs and lifts open with a slight pull. The lift up feature keeps the doorhot face away from operator when open and has a safety cut off when the door is opened during operation.

Additional options

To suit your requirements the addition of options such as programmable controllers, timers and cable access ports are also available.

Capacity	15
Int. Dim HxWxD	150 x240 x 425
Ext. Dim HxWxD	72 x63. 5 x 72
Temp. Controller	Digital PID Controller
Temp. Min	+300 °C
Temp. Max	1200 °C
Temp Setting Accuracy	1°C
Temp. Fluctuation	+/- 1%
Temp. Sensor	Type N
Heating system	Electric Element
Interior material	Ceramic Lined
Exterior material	Stainless Steel
Options	Cable entry port, programmable controller, extraction vent, internal shelf. Other models: cantilever door, ashing furnace, volatile matter furnace
Safety Features	Over temperature alarm, temperature protection cut off, earth leakage breaker (ELB)
Power Supply	240V / 50Hz
Power (W)	4800/20 AMPS
Weight (kg)	69
