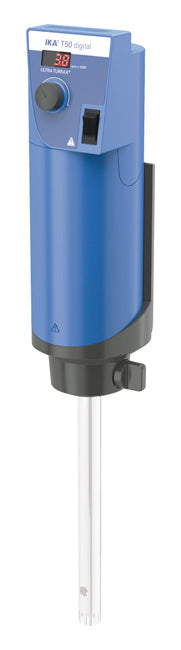

T 50 digital ULTRA-TURRAX

Powerful dispersing instrument for volumes from 0. 25 - 30 l (H2O) with digital speed display. It offers a wide speed range from 500 - 10,000 rpm that enables users to work at high circumferential speeds even with small rotor diameters. A broad choice of dispersing elements guarantees a wide range of applications. Reproducible operations due to constant speed even with changes in viscosities.

• Digital speed display
• Electronic speed control
• Electronic overload protection
• Stainless steel dispersing elements can be cleaned quickly and easily
• Smooth start
• Error code display

Motor protection against overload

Digital display for precise monitoring of set and actual speeds

Wide selection of dispersing tools to suit your application

Rotating knob for adjusting the speed

2+1 year after registering at 2+1 www. ika. com/register

Motor rating input 1100 W
Motor rating output 700 W
Volume range min. (H2O) 0. 25 l
Volume range max. (H2O) 30 l
Viscosity max. 5000 mPas
Speed range 600 - 10000 rpm
Speed deviation 1 %
Speed display LED
Speed control stepless
Noise without element 72 dB(A)
Extension arm diameter 16 mm
Extension arm length 220 mm
Process type batch
Timer no
Permissible ON time 100 %
Dimensions (W x H x D) 115 x 355 x 139 mm
Weight 5. 76 kg
Permissible ambient temperature 5 - 40 °C
Permissible relative humidity 80 %
Protection class according to DIN EN 60529 IP 20
RS 232 interface no
USB interface no
Analog output no
Voltage 220 - 240 / 100 - 120 V
Frequency 50/60 Hz
Power input 1100 W
IKA-3787000 3787000 IKA-3787005 3787005
