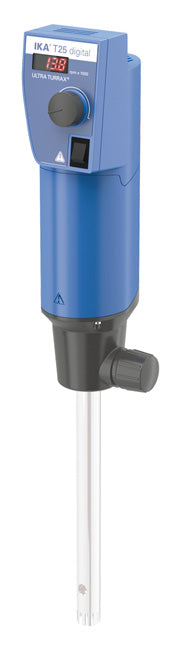

T 25 digital ULTRA-TURRAX

High-performance dispersing instrument for volumes from 1 - 2000 ml (H2O) with digital speed display. It offers a wide speed range from 3000 - 25,000 rpm that enables users to work at high circumferential speeds even with small rotor diameters. A broad choice of dispersing elements adds versatility. Applications ranges from homogenizing waste water samples, use in laboratory reactors, dispersion tasks under vacuum / pressure and sample preparation in medical diagnostics.

• Digital speed display
• Electronic speed control
• Electronic overload protection
• Stainless steel dispersing elements can be cleaned quickly and easily
• Plastic disposable dispersing elements are available in two sizes
• Error code display
• Quiet operation

Motor rating input 700 W
Motor rating output 500 W
Volume range min. (H2O) 0. 001 l
Volume range max. (H2O) 2 l
Viscosity max. 5000 mPas
Speed range 3000 - 25000 rpm
Speed deviation 1 %
Speed display LED
Speed control stepless
Noise without element 75 dB(A)
Extension arm diameter 13 mm
Extension arm length 160 mm
Process type batch
Timer no
Permissible ON time 100 %
Dimensions (W x H x D) 87 x 271 x 106 mm
Weight 2. 5 kg
Permissible ambient temperature 5 - 40 °C
Permissible relative humidity 80 %
Protection class according to DIN EN 60529 IP 20
RS 232 interface no
USB interface no
Analog output no
Voltage 220 - 240 / 100 - 120 V
Frequency 50/60 Hz
Power input 700 W
IKA-3725005 3725005 IKA-3725000 3725000
