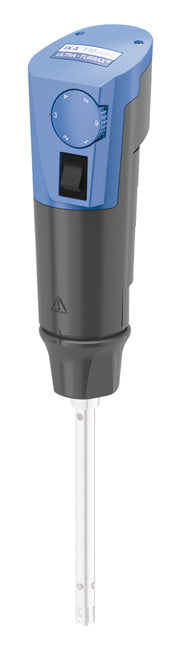

T 10 basic ULTRA-TURRAX

Small dispersing instrument for volumes from 0. 5 - 100 ml (H2O). It offers a wide speed range from 8000 - 30,000 rpm that enables users to work at high circumferential speeds even with small rotor diameters. A broad choice of dispersing elements guarantees a wide range of applications.

• Quick-connect coupling for changing dispersing elements easily
• Ideal for manual operation due to its light weight and ergonomic design
• Extremely mobile due to direct line power (no transformer required)
• Stainless steel dispersing elements can be cleaned quickly and easily as they can be dismounted without tools
• Plastic disposable dispersing elements are available in two sizes, particularly suitable for PCR analysis
• High performance drive ensures immense speed stability
• Quiet operation

Motor protection against overload

Quick-connect coupling to exchange dispersing tools easily

Wide selection of dispersing tools to suit your application

2+1 year after registering at 2+1 www. ika. com/register

Motor rating input 125 W
Motor rating output 75 W
Volume range min. (H2O) 0. 0005 l
Volume range max. (H2O) 0. 1 l
Viscosity max. 5000 mPas
Speed range 8000 - 30000 rpm
Speed display scale
Speed control stepless
Noise without element 65 dB(A)
Extension arm diameter 8 mm
Extension arm length 100 mm
Process type batch
Power-on time ON 10 min
Power-om time OFF 5 min
Dimensions (W x H x D) 56 x 178 x 66 mm
Weight 0. 5 kg
Permissible ambient temperature 5 - 40 °C
Permissible relative humidity 80 %
Protection class according to DIN EN 60529 IP 30
Voltage 230 / 115 / 100 V
Frequency 50/60 Hz
Power input 125 W
IKA-3737005 3737005 IKA-3737000 3737000
